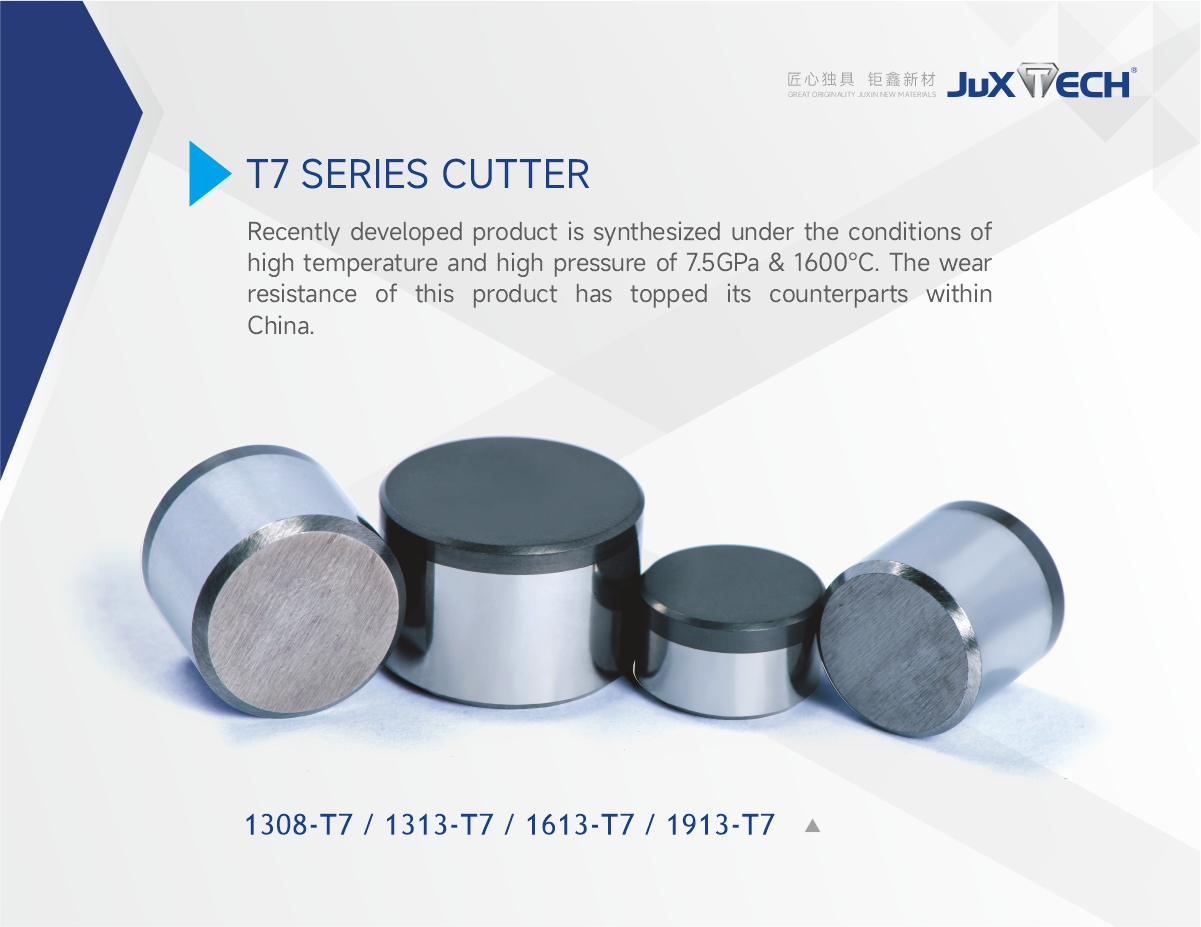

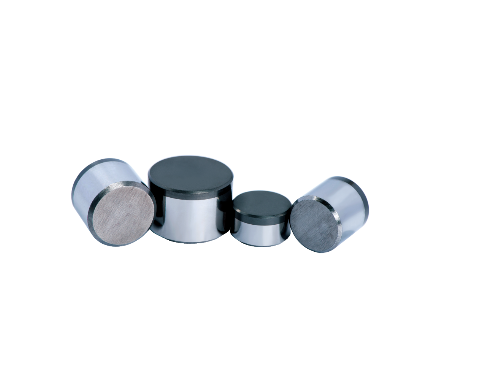

1308-T7
Diameter: 13.44±0.02mm
Height: 8.00±0.05mm
Table height: 2.1±0.2mm
Impact: 45J×10 times
VTL: >200
High- temperature Resistance: 750 °C 10 min
1313-T7Diameter: 13.44±0.02mm
Height: 13.20±0.05mm
Table height: 2.1±0.2mm
Impact: 45J×10 times
VTL: >200
High- temperature Resistance: 750 °C 10 min1613-T7
Diameter: 15.88±0.02mm
Height: 13.20±0.05mm
Table height: 2.1±0.2mm
Impact: 50J×10 times
VTL: >200
High- temperature Resistance: 750 °C 10 min
1913-T7直徑Diameter: 19.05±0.02mm
Height: 13.20±0.05mm
Table height: 2.1±0.2mm
Impact: 60 J×10 times
VTL: >200
High- temperature Resistance: 750 °C 10 min
